방수 플렉시블 전선관(Liquidtight Flexible Metal Conduit, LFMC) 관련 규정(법령, 법규, 기준, 규칙, 법, 근거, CODE, 코드)

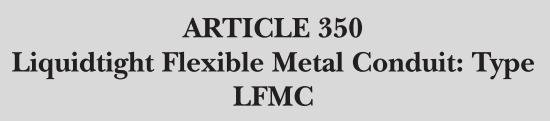

50.2 Definition.
Liquidtight Flexible Metal Conduit (LFMC).
A raceway of circular cross section having an outer liquidtight, nonmetallic, sunlight-resistant jacket over an inner flexible metal core with associated couplings, connectors, and fittings for the installation of electric conductors.
📌 NEC 350.2 - 정의 (Definition)
💡 액체 차단 유연 금속 전선관 (Liquidtight Flexible Metal Conduit, LFMC)
LFMC는 원형 단면을 가진 전선관으로, 안쪽에는 유연한 금속 코어가 있고, 바깥쪽에는 액체를 차단하는 비금속 자켓(외피)이 감싸고 있어.
이 자켓은 태양광에도 견딜 수 있도록 설계되었어.
LFMC는 전선 설치 시 사용되는 연결 부품(커플링, 커넥터, 피팅)과 함께 사용돼.
350.10 Uses Permitted.
LFMC shall be permitted to be used in exposed or concealed locations as follows:
(1) Where conditions of installation, operation, or maintenance require flexibility or protection from liquids, vapors, or solids
(2) In hazardous (classified) locations where specifically permitted by Chapter 5
(3) For direct burial where listed and marked for the purpose
📌 NEC 350.10 - 사용이 허용되는 경우 (Uses Permitted)
LFMC는 다음과 같은 환경에서 사용할 수 있어!
✅ 설치, 작동, 유지보수 과정에서 유연성이 필요하거나, 액체, 증기, 고체로부터 보호해야 할 때
→ 예를 들어, 기계 주변이나 습기가 많은 장소에서 사용하면 좋아.
✅ 위험한 지역(폭발 위험 구역) 중에서 NEC 5장에서 특별히 허용된 경우
→ 예를 들어, 가연성 가스가 있는 공간에서도 NEC 기준에 따라 사용 가능해.
✅ 직접 매설(땅속埋設)할 때, 해당 용도로 인증받고 표시된 경우
→ 즉, 땅에 묻을 수 있는 LFMC인지 확인하고 사용해야 해!
이 전선관은 물이나 습기, 오염 물질로부터 전선을 보호해야 하는 환경에서 유용해! 🏗️🔧💡
350.12 Uses Not Permitted.
LFMC shall not be used as follows:
(1) Where subject to physical damage
(2) Where any combination of ambient and conductor temperature produces an operating temperature in excess of that for which the material is approved
📌 NEC 350.12 - 사용이 금지된 경우 (Uses Not Permitted)
LFMC (Liquidtight Flexible Metal Conduit, 방수 유연 금속 전선관)는 다음과 같은 경우에 사용할 수 없다:
1️⃣ 물리적 손상이 예상되는 곳 (Where subject to physical damage)
- 충격을 받거나 눌릴 위험이 있는 곳에서는 사용 금지!
- FMC보다 튼튼하지만, 강철 전선관(RMC)처럼 강한 보호는 불가능.
2️⃣ 온도가 너무 높은 곳 (Where any combination of ambient and conductor temperature produces an operating temperature in excess of that for which the material is approved)
- 주변 환경 온도와 내부 전선 온도의 합이 전선관의 허용 온도 한계를 초과하는 곳에서는 사용 금지.
- 고온 환경에서는 LFMC가 녹거나 손상될 위험이 있음.
📌 쉽게 설명하면?
✅ LFMC(방수 유연 금속 전선관)는 습기나 물이 있는 환경에서 유연하게 배선할 때 사용 가능!
❌ 하지만 물리적 충격이 강한 곳이나, 온도가 너무 높은 환경에서는 사용하면 안 됨!
💡 쉽게 말하면?
LFMC는 "방수 기능이 있는 유연한 전선관" 이지만, "강한 충격이나 고온에는 약함"
➡️ 그래서 물리적 충격이 있는 곳에서는 강철 전선관(RMC), 고온 환경에서는 내열성이 높은 전선관을 사용해야 함!
